Designing a Switch

Now we try to create an RNA switch using switch.pl. First we create our inputfile, then invoke the program using ten optimazation runs (-n 10) and do not allow lonely pairs. Write it out to switch.out

	  switch.in
	     ((((((((......))))))))....((((((((.......))))))))
	     ((((((((((((((((((........)))))))))))))))))).....

	  $ switch.pl -n 10 --noLP < switch.in > switch.out

switch.out should look similar like this, the first block represents our bi-stable structures in random order, the second block shows the resulting sequences ordered by their score.

	  $ less switch.out

	  GUCUGGGAGUGACGUCCCAGAUUUCCGGGGCGUCGUUUCCGGACGCCCC   1.1747
  	  CUGUAGUCAUUGGGGACUACAGAACAGGUUUCUGGUGAUUGCAGGAACC   0.9442
  	  CCCGGUUGUGAGAUCAGCCGGGCACAGCUGGUCUUGUAACUGGGCCAGU   1.3980
  	  [...]
  	  the resulting sequences are:
  	  CCCGGUUGUGAGAUCAGCCGGGCACAGCUGGUCUUGUAACUGGGCCAGU   1.3980
  	  CGGGCCAGAGUUGCCUGGUCCGAUUGUCAGGCAGUUUUGGCCUGCCUGA   1.3888
  	  AUGAGCUAAGUGUCUGGCUCAUAAAUGUCGGACGUUUAGUUCGUCCGGC   1.3832
	  [...]

Given all 10 suggestions in our switch.out, we select the one with the best score with some command line tools to use it as an RNAsubopt input file and build up the barriers tree.

	  $ tail -10 switch.out | awk '{print($1)}'  | head -n 1 > subopt.in
	  $ RNAsubopt --noLP -s -e 10 < subopt.in > subopt.out
	  $ barriers -G RNA-noLP --bsize --rates --minh 2 --max 30 < subopt.out > barriers.out

tail -10 cuts the last 10 lines from the switch.out file and pipes it into an awk script. The function print($1) echoes only the first column and this is piped into the head program where the first line, which equals the best scored sequence, is taken and written into subopt.in. Then RNAsubopt is called to process our sequence and write the output to another file which is the input for the barriers calculation.

Below you find an example of the barriertree calculation above done with the right settings (connected root) on the left side and the wrong RNAsubobt -e value on the right. Keep in mind that switch.pl performs an stochastic search and the output sequences are different every time because there are a lot of sequences which fit the structure and switch calculates a new one everytime. Simply try to make sure.

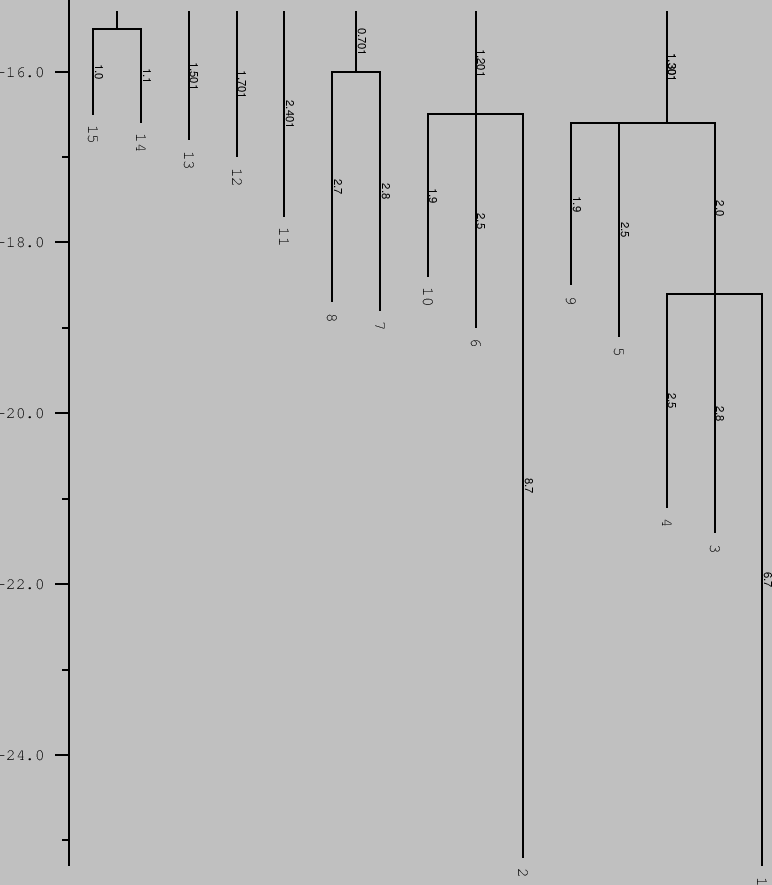

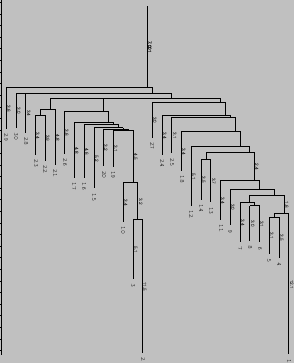

left: Barriers tree as it should look like, all branches connected to the main root right: disconnected tree due to a too low energy range (-e) parameter set in RNAsubopt.

Be careful to set the range -e high enough, otherwise we get a problem when calculation the kinetics using treekin. Every branch should be somehow connected to the main root of the tree. Try -e 20 and -e 30 to see the difference in the trees and choose the optimal value. By using -max 30 we shorten our tree to focus only on the lowest minima and select also a branch preferably outside of the two main branches, here branch 29 (may differ from your own calculation). Look at the barrierstree to find the best branch to start and replace 29 by the branch you would choose. Now use treekin to plot concentration kinetics and think about the graph you just created.

	  $ treekin -m I --p0 29=1  < barriers.out > treekin.out
	  $ xmgrace -log x -nxy treekin.out

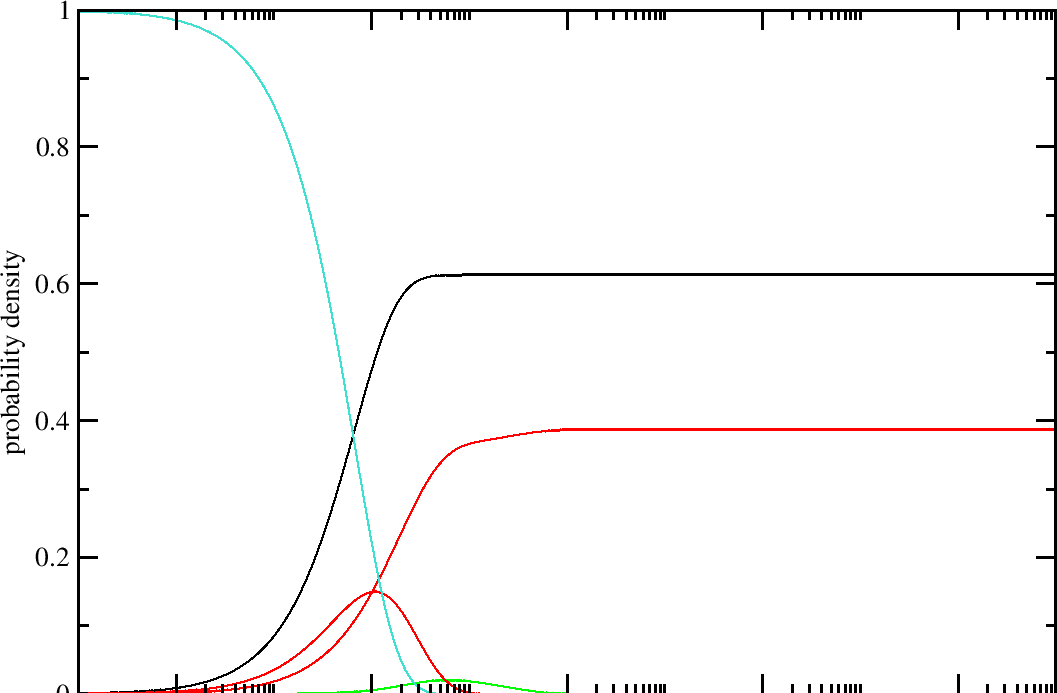

The graph could look like the one below, remember everytime you use switch.pl it can give you different sequences so the output varies too. Here the one from the example.
