integratorInstance.h File Reference

#include "nvector_serial.h"
#include "sbmlsolver/exportdefs.h"
#include "sbmlsolver/integratorSettings.h"
#include "sbmlsolver/cvodedatatype.h"
#include "sbmlsolver/odeModel.h"
#include "sbmlsolver/cvodedata.h"

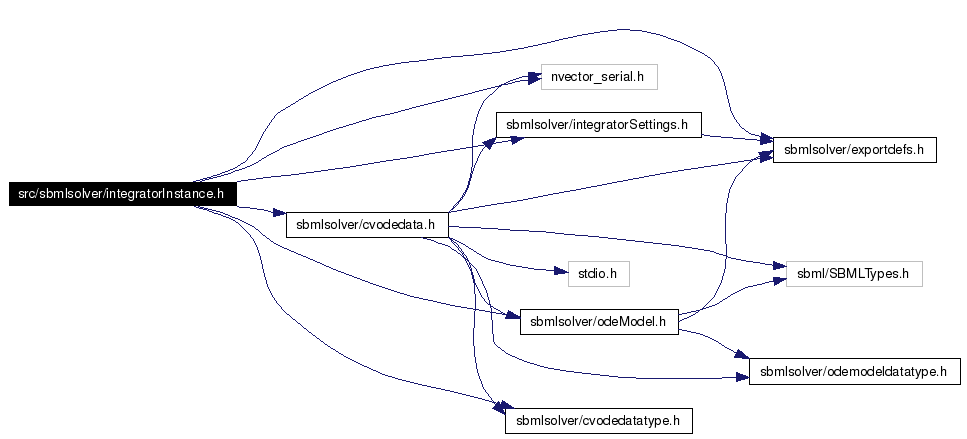

Include dependency graph for integratorInstance.h:

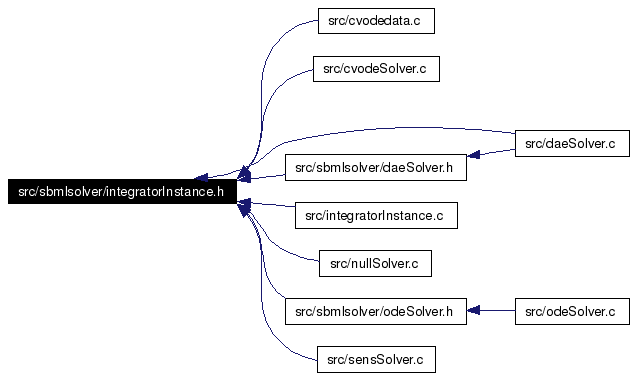

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures
struct	cvodeSolver
	Solver State Information. More...
struct	integratorInstance
	the main structure for numerical integration More...
Typedefs
typedef cvodeSolver	cvodeSolver_t
typedef integratorInstance	integratorInstance_t
Functions
SBML_ODESOLVER_API integratorInstance_t *	IntegratorInstance_create (odeModel_t *, cvodeSettings_t *)
	Creates an new integratorInstance.
SBML_ODESOLVER_API int	IntegratorInstance_set (integratorInstance_t *, cvodeSettings_t *)
	Resets and existing integratorInstance with new settings.
SBML_ODESOLVER_API int	IntegratorInstance_reset (integratorInstance_t *)
	Resets and integratorInstance to its initial values.
SBML_ODESOLVER_API cvodeSettings_t *	IntegratorInstance_getSettings (integratorInstance_t *)
	Returns the settings of this integratorInstance.
SBML_ODESOLVER_API void	IntegratorInstance_copyVariableState (integratorInstance_t *target, integratorInstance_t *source)
	Copies variable and parameter values between two integratorInstances that have been created from the same odeModel.
SBML_ODESOLVER_API double	IntegratorInstance_getTime (integratorInstance_t *)
	Returns the current time of an integration.
SBML_ODESOLVER_API double	IntegratorInstance_getVariableValue (integratorInstance_t *, variableIndex_t *)
	Gets the value of a variable or parameter during an integration via its variableIndex.
SBML_ODESOLVER_API double	IntegratorInstance_getSensitivity (integratorInstance_t *, variableIndex_t *y, variableIndex_t *p)
	Gets the sensitivity of variable y to parameter p at the current time.
SBML_ODESOLVER_API int	IntegratorInstance_setNextTimeStep (integratorInstance_t *, double)
	Sets the next output time for infinite integration.
SBML_ODESOLVER_API void	IntegratorInstance_dumpNames (integratorInstance_t *)
	Prints variable names, the first value is the time,.
SBML_ODESOLVER_API void	IntegratorInstance_dumpData (integratorInstance_t *)
	Prints the current integration data,.
SBML_ODESOLVER_API void	IntegratorInstance_dumpYSensitivities (integratorInstance_t *, variableIndex_t *)
	Prints the current time, current value of variable y and sensitivities to all parameters for which calculated.
SBML_ODESOLVER_API void	IntegratorInstance_dumpPSensitivities (integratorInstance_t *, variableIndex_t *)
	Prints the current time, the value of parameter p and all variable's sensitivities Si to p, where i = 1 to NEQ.
SBML_ODESOLVER_API cvodeData_t *	IntegratorInstance_getData (integratorInstance_t *)
	Returns a pointer cvodeData of the integratorInstance, which contains the current values of all variables.
SBML_ODESOLVER_API int	IntegratorInstance_integrate (integratorInstance_t *)
	Starts the default integration loop with standard error handling and returns 0 if integration was OK, and the error code if not.
SBML_ODESOLVER_API int	IntegratorInstance_checkTrigger (integratorInstance_t *)
	Evaluates event trigger expressions and executes event assignments for those triggers that are true.
SBML_ODESOLVER_API int	IntegratorInstance_checkSteadyState (integratorInstance_t *)
	Approximate identification of a steady state.
SBML_ODESOLVER_API int	IntegratorInstance_timeCourseCompleted (integratorInstance_t *)
	Returns TRUE if the requested timecourse has been completed for the passed integratorInstance.
SBML_ODESOLVER_API cvodeResults_t *	IntegratorInstance_createResults (integratorInstance_t *)
	Creates and returns a cvodeResults structure containing the results of one integration run and NULL if not successful.
SBML_ODESOLVER_API int	IntegratorInstance_updateModel (integratorInstance_t *)
	Writes current simulation data to original model.
SBML_ODESOLVER_API int	IntegratorInstance_simpleOneStep (integratorInstance_t *)
	Handles the simple case of models that contain no ODEs.
SBML_ODESOLVER_API void	IntegratorInstance_setVariableValue (integratorInstance_t *, variableIndex_t *, double)
	Sets the value of a variable or parameter during an integration via its variableIndex.
SBML_ODESOLVER_API int	IntegratorInstance_integrateOneStep (integratorInstance_t *)
	Moves the current integration one step forward and switches between different solvers for filling ODE variables.
SBML_ODESOLVER_API void	IntegratorInstance_dumpSolver (integratorInstance_t *)
	Prints the current state of the solver.
SBML_ODESOLVER_API void	IntegratorInstance_free (integratorInstance_t *)
	Frees an integratorInstance, including cvodeData.
SBML_ODESOLVER_API int	IntegratorInstance_handleError (integratorInstance_t *)
	Standard handler for when the integrate function fails.
SBML_ODESOLVER_API void	IntegratorInstance_printStatistics (integratorInstance_t *, FILE *f)
	Prints some final statistics of the solver.
int	IntegratorInstance_updateData (integratorInstance_t *)
	Default function for updating data, to be used by solvers after they have calculate x(t) and updated the time.

---

Typedef Documentation

typedef struct cvodeSolver cvodeSolver_t

typedef struct integratorInstance integratorInstance_t

---
