#include <Pattern.hh>

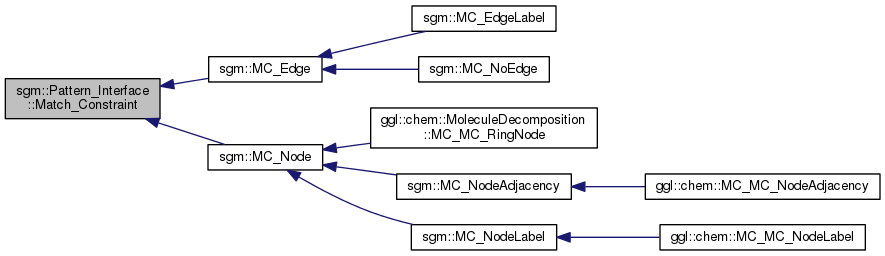

Inheritance diagram for sgm::Pattern_Interface::Match_Constraint:

Public Member Functions
virtual Match_Constraint *	clone (void) const =0

virtual bool	isConstrainedLabel (const std::string &label) const =0

virtual bool	isConstraining (const size_t nodeID) const =0

virtual bool	isValidMatch (const Pattern_Interface &pattern, const Graph_Interface &target, const Match &match) const =0

	Match_Constraint ()
	construction More...

virtual bool	operator== (const Match_Constraint &toCompare) const =0

virtual Match_Constraint *	remap (const Match &old2newIndexMapping, const size_t unmatchedIndex=UINT_MAX)=0

virtual	~Match_Constraint ()
	destruction More...

Detailed Description

A match constraint describes additional properties that have to be fullfilled by a given match on a given target.

Definition at line 30 of file Pattern.hh.

Constructor & Destructor Documentation

sgm::Pattern_Interface::Match_Constraint::Match_Constraint ( )

inline

Definition at line 35 of file Pattern.hh.

virtual sgm::Pattern_Interface::Match_Constraint::~Match_Constraint ( )

inlinevirtual

Definition at line 40 of file Pattern.hh.

Member Function Documentation

virtual Match_Constraint* sgm::Pattern_Interface::Match_Constraint::clone ( void ) const

pure virtual

Creates a new Match_Constraint heap object that equals the current object. NOTE: YOU have to delete it later on! There is no garbage collection!

Returns: a new allocated Match_Constraint object that equals this

Implemented in sgm::MC_NodeLabel, sgm::MC_EdgeLabel, ggl::chem::MC_MC_NodeLabel, sgm::MC_NodeAdjacency, ggl::chem::MoleculeDecomposition::MC_MC_RingNode, ggl::chem::MC_MC_NodeAdjacency, sgm::MC_NoEdge, sgm::MC_Node, and sgm::MC_Edge.

virtual bool sgm::Pattern_Interface::Match_Constraint::isConstrainedLabel ( const std::string & label ) const

pure virtual

Checks whether or not a given label is part of the constraint information. This check is needed by some parsers to verify the wildcard definition.

Parameters

label the label of interest

Returns: true if the label is part of the constraint; false otherwise

Implemented in sgm::MC_NodeLabel, sgm::MC_EdgeLabel, sgm::MC_NodeAdjacency, ggl::chem::MoleculeDecomposition::MC_MC_RingNode, and sgm::MC_NoEdge.

virtual bool sgm::Pattern_Interface::Match_Constraint::isConstraining ( const size_t nodeID ) const

pure virtual

Checks whether or not this constraint covers the node with the given ID.

Parameters

nodeID the ID of the node of interest

Returns: true if the node is covered by the constraint; false otherwise

Implemented in sgm::MC_Node, and sgm::MC_Edge.

virtual bool sgm::Pattern_Interface::Match_Constraint::isValidMatch	(	const Pattern_Interface &	pattern,
		const Graph_Interface &	target,
		const Match &	match
	)		const

pure virtual

Checks whether or not a match on a given target fullfills the additional matching constraint.

Parameters

pattern	the pattern graph that was matched
target	the target graph the pattern was matched on
match	the match information for the pattern on the target graph

Returns: true if the match is valid; false if the constraint is violated

Implemented in sgm::MC_EdgeLabel, sgm::MC_NoEdge, and sgm::MC_Node.

virtual bool sgm::Pattern_Interface::Match_Constraint::operator== ( const Match_Constraint & toCompare ) const

pure virtual

Equality comparison to another match constraint.

Parameters

toCompare the constraint to compare to

Returns: true if the constraints are equal; false otherwise

Implemented in sgm::MC_Node.

virtual Match_Constraint* sgm::Pattern_Interface::Match_Constraint::remap	(	const Match &	old2newIndexMapping,
		const size_t	unmatchedIndex = `UINT_MAX`
	)

pure virtual

Creates a new Match_Constraint heap object that equals the current object but uses the new indices given by old2newIndexMapping. NOTE: YOU have to delete it later on! There is no garbage collection!

Parameters

old2newIndexMapping	the index mapping to be used for the remapping
unmatchedIndex	an optional specific index that marks unmatched nodes within old2newIndexMapping. if this constrains one of these nodes, no remapping is done and NULL is returned

Returns: a new allocated Match_Constraint object or NULL if the constraint was covering unmatched nodes

Implemented in sgm::MC_NodeLabel, sgm::MC_EdgeLabel, ggl::chem::MC_MC_NodeLabel, sgm::MC_NodeAdjacency, ggl::chem::MoleculeDecomposition::MC_MC_RingNode, ggl::chem::MC_MC_NodeAdjacency, sgm::MC_NoEdge, sgm::MC_Node, and sgm::MC_Edge.

The documentation for this class was generated from the following file:

src/sgm/Pattern.hh
